Mahaveer Steel is the greatest creator and supplier of Titanium Grade 1/2/5/7 Pipes Tubes. We have some skill in gathering Titanium Grade 1/2/5/7 Seamless and Welded Pipes with numerous long periods of inclusion.
We offer unparalleled quality, lower cost and the best help of our respected clients. We plan and admission titanium grades as shown by open and overall quality standards just, and besides these grades of welded pipes are available in different sizes.

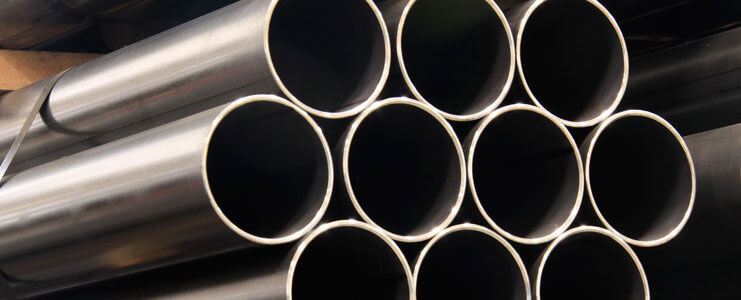

Titanium Grade 1/2/5/7 Seamless and Welded Pipes mentioning high versatility and extraordinary weldability to be used in a wide scope of usages. Titanium reliable chambers are smoother and have in the end minor cruelty. Out of all of the 1/2/5/7, the most preferred grade among our clients is 5 Grade. Titanium Grades are overall used on high warmth applications that consolidate radiators, burners, heat exchangers and titanium exhaust pipe, etc
Pipe Specification : ASTM B861, B862 / ASME SB861, SB862
Dimension Standard : ANSI B36.19M, ANSI B36.10
Titanium Gr 1/2/5/7 Pipe Size : 1/4" sch 10 to 16" sch 80
Titanium Gr 1/2/5/7 Tube Size : OD 1/16"~4", Wall: 0.010"~0.250", Length: 17'/24' FT R/L
Outside Diameter : 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
All Pipes is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Pipe/Tube | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Titanium Gr 2 Pipes | 1/8″ |
 |
|
|
|
|
| Titanium Gr 2 Pipes | 1/4″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 3/8″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 1/2″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 3/4″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 1″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 1 1/4″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 1 1/2″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 2″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 2 1/2″ |
|
|
|
|
|
| Titanium Gr 2 Seamless Pipes | 3″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 4″ |
|
|
|
|
|
| Titanium Gr 2 Seamless Pipes | 5″ |
|
|
|
|
|
| Titanium Gr 2 Pipes | 6″ |
|
|
|
|
| Grade | C | N | O | H | Ti | Fe |
| Ti Gr.2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | Bal | 0.30 max |
| Ti Gr.5 | 0.10 max | 0.05 max | 0.25 max | 0.015 max | Bal | 0.40 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Ti Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
